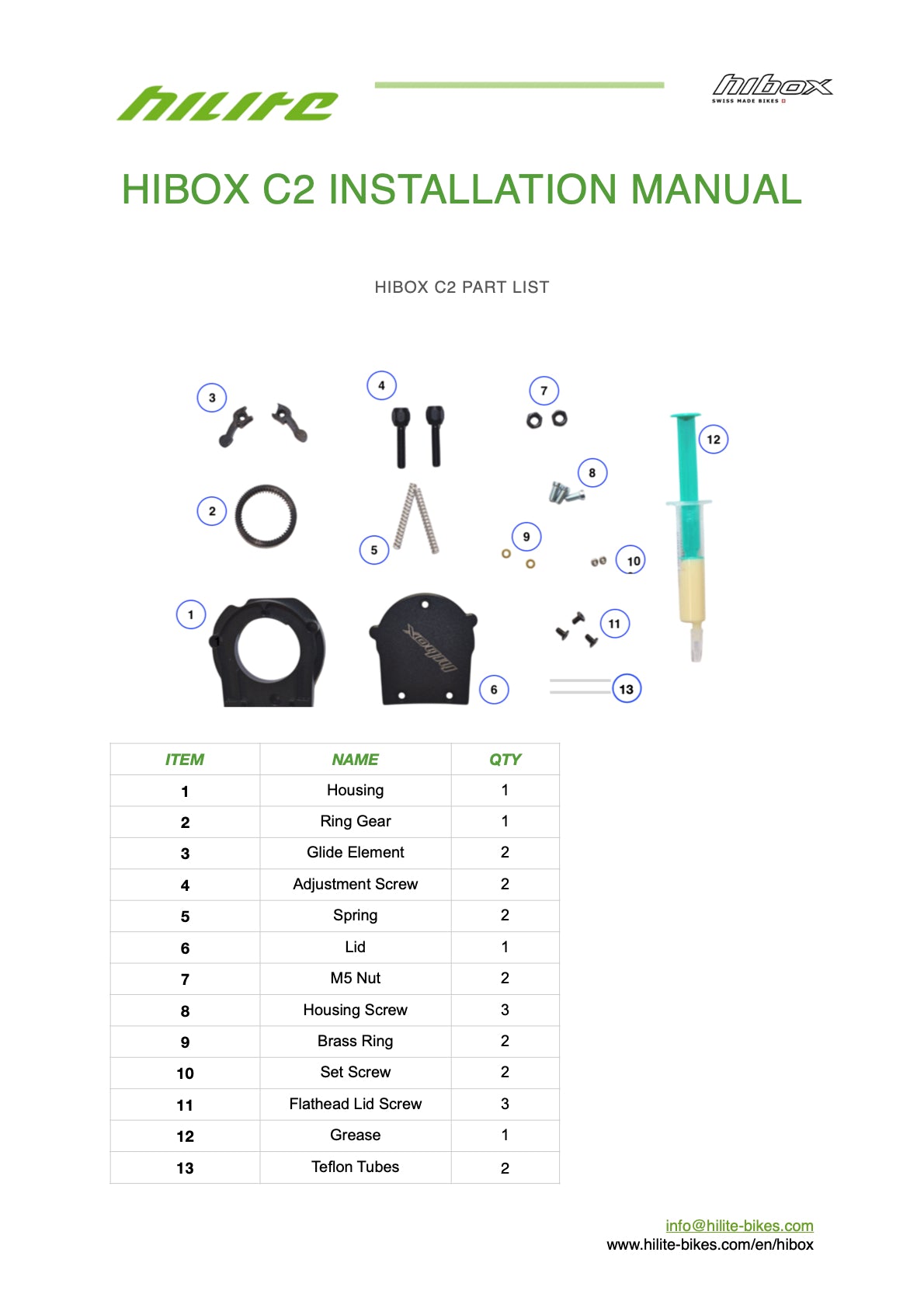

HIBOX C2 INSTALLATION MANUAL HIBOX C2 PART LIST

Introduction

Hibox C2 is our second generation of a compact shifting system designed to enhance the functionality of Pinion C-line gearboxes, especially for riders using brake and shift levers on race handlebars or trigger shifters on MTB handlebars. It replaces the standard twist shifter, offering a clean and ergonomic solution for a more streamlined cockpit.

COMPATIBILITY

Partagez des informations sur votre marque. Décrivez un produit, partagez des annonces ou souhaitez la bienvenue à vos clients dans votre boutique.

Required Tools

Hibox C2 is only compatible with Pinion C-line gearboxes. Shimano:

For Shimano shifters the Gebla Shimkit A22/A21 must be used. With this modification it is possible to use the: GRX820, GRX810, GRX600, GRX400, DuraAce 9020, Ultegra 8020,

105 ST-R7020, 105 ST-R7025

 Sram:

Hibox is compatible with all mechanical shifters from Sram

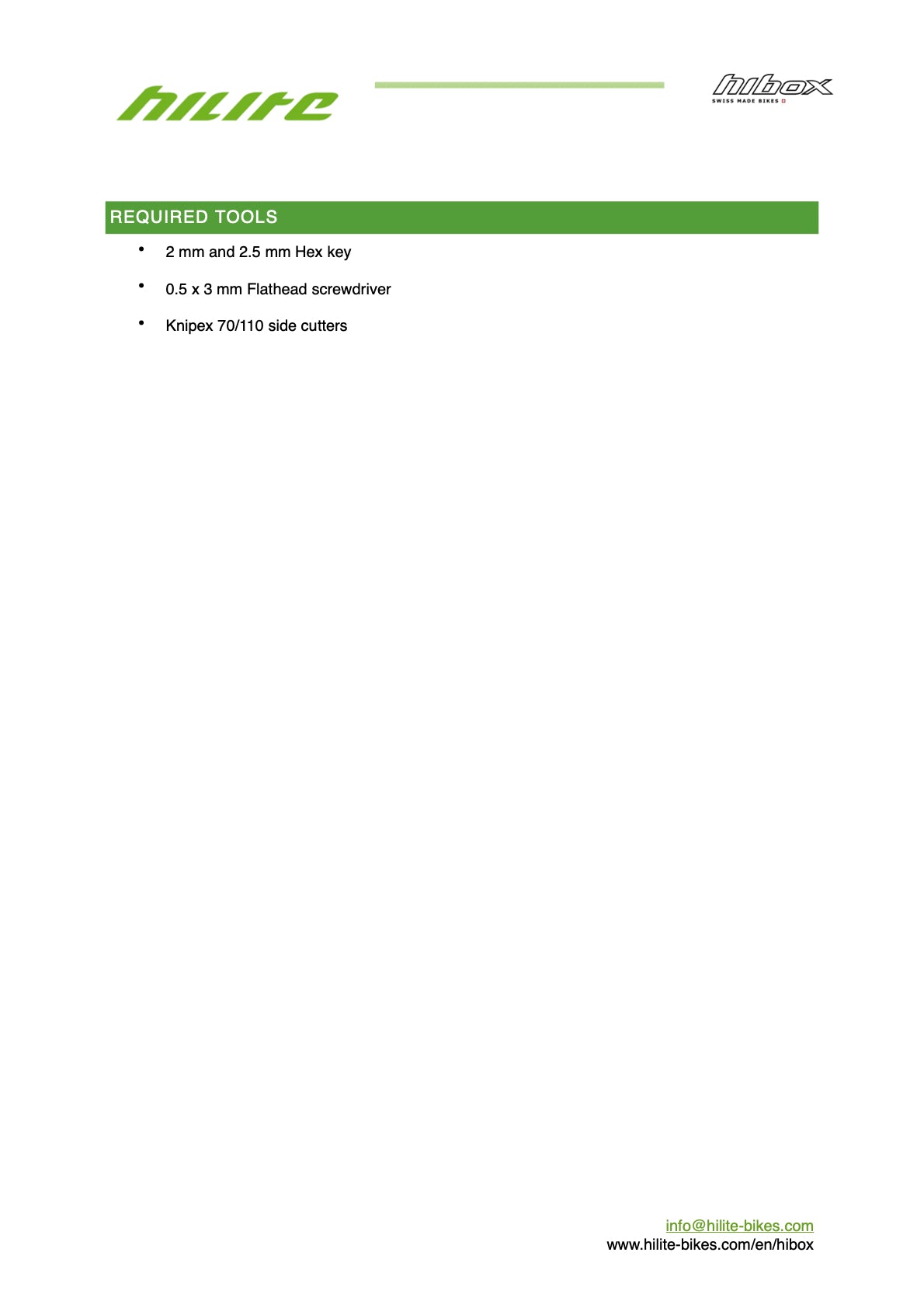

Required Tools

  • 2 mm and 2.5 mm Hex key
  • 0.5 x 3 mm Flathead screwdriver
  • Knipex 70/110 side cutters
